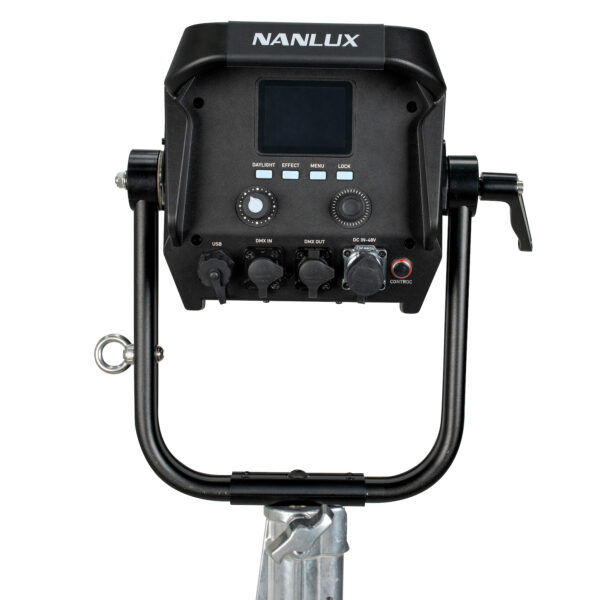

Nanlux Evoke 1200
Finally - a LED that has some throw. This thing behaves like an 1800W Fresnel HMI (a little less than what an M18 puts out - but more than what a 1200 compact fresnel would). Yeah, it's just daylight, but so would an HMI - but now you have the option of dimming it down. The unit comes with a reflector, but we do have a fresnel attachement for each unit.
The Evoke 1200 LED Light from Nanlux has a daylight color temperature of 5600K and a high CRI/TLCI rating of 96/97 to indicate precise accuracy in color rendition. The fixture with yoke measures 19.8 x 14.5 x 8.3" and will give you 18,400 Lux with the included 45° reflector, rivaling the output of a 1.2K incandescent fixture. It is dimmable from 0 to 100% and you can make power adjustments and turn the unit on and off locally on the light as well as from a remote console or wirelessly via 2.4 GHz signal, Bluetooth, DMX/RDM, or LumenRadio. You can turn the quiet fan off for in sound-sensitive situations.
One of the many benefits is a library of special effects including INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Fireworks, Explosion, and Welding. The light is ready for worldwide use thanks to its universal power supply, but it can also run on optional batteries when mains current is unavailable. Optional accessories include a variety of softboxes and the FL-35 Fresnel lens.
Technical Specifications
Accessories
Rent From Flug
Light Fixture
Item Type | 1 x LED Spot Light |
Included Light Modifier | 1 x Reflector |
Included Storage Case | None |
Lumens | Not Specified by Manufacturer |
Photometrics | 5600K: 4625 fc / 49,788 Lux at 3.3' / 1 m* 513 fc / 5532 Lux at 9.8' / 3 m 1714 fc / 18,460 Lux at 9.8' / 3 m (with Reflector) 220 fc / 2373 Lux at 16.4' / 5 m 611 fc / 6583 Lux at 16.4' / 5 m (with Reflector) *Standardized Measurement Calculated Internally Based on Closest Distance |
Color Temperature | 5600K |
Color Modes | Daylight |
Color Accuracy Standard | CRI 96 TLCI 97 |
Cooling System | Fan |
Dimming | Yes, Built-In Dimmer 0 to 100% |
Built-In Flash | No |
Umbrella Mount | No |
Front Accessory Mount | Proprietary |
Connectivity
Wireless Remote Control Type | Bluetooth Radio/RF *Remote Not Included Wireless CRMX |
Mobile App Compatible | Yes: Android & iOS App Name: NANLINK *As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
Power & I/O
Power Source | AC Power (Cable Included) *Requires Power Supply/Controller (Included) Battery (Not Included) *Requires Power Supply/Controller (Included) |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
DC Input Power | 48 VDC at 25 A |
Included Adapter / Cable | Yes |
Inline Switch | No |
Power Pass-Thru | No |
Power Consumption | 1200 W |
Mounting
Yoke Type | Manually-Operated Yoke |
Fixture Mounting | 1 x 1-1/8" Stud (Via Yoke Mount) |
Environmental
Environmental Protection | Advertised as Dust Resistant/Water Resistant *Manufacturer Testing: IP54 |
General
Dimensions | 14.8 x 9.7 x 7.1" / 37.6 x 24.6 x 18 cm (Power Supply/Controller) 19.8 x 14.6 x 8.3" / 50.3 x 37.1 x 21.1 cm (Fixture with Yoke) |
Weight | 15.3 lb / 6.94 kg (Fixture with Yoke) 22 lb / 10 kg (Power Supply/Controller) |
