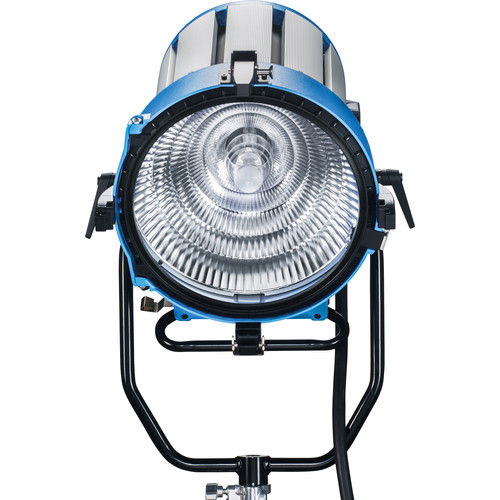

Arri M40 4K/2.5K HMI Rental
$0.00Price
The ARRI M40 HMI Head is a location workhorse. Whenever you need to punch light through a silk or bounce light off a reflective surface, an M40 is the ultimate answer. At the design stage, the interaction of the lamp, reflector, and converter lens was taken into consideration and computer simulated, resulting in unmatched performance. The M40 can be fitted with a 2,500 or 4,000W single-ended HMI lamp, making it a very versatile lighting fixture.
Technical Specifications
Lamp
| Included Lamps | None |
| Supported Wattage | 2500 to 4000 W |
| Photometrics | 18° 179,993 fc / 1,937,500 Lux at 3.3' / 1 m* 7200 fc / 77,500 Lux at 16.4' / 5 m 1800 fc / 19,375 Lux at 32.8' / 10 m 800 fc / 8611 Lux at 49.21' / 15 m 30° 59,920 fc / 645,000 Lux at 3.3' / 1 m* 2397 fc / 25,800 Lux at 16.4' / 5 m 599 fc / 6450 Lux at 32.8' / 10 m 266 fc / 2867 Lux at 49.21' / 15 m 52° 25,315 fc / 272,500 Lux at 3.3' / 1 m* 1013 fc / 10,900 Lux at 16.4' / 5 m 253 fc / 2725 Lux at 32.8' / 10 m 113 fc / 1211 Lux at 49.21' / 15 m *Standardized Measurement Calculated Internally Based on Closest Distance |
| Base Type | Mogul Bi-Post G38 |
Compatibility
| Fixture Mount | 1-1/8" Stud |
Power
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
General
| Certifications | CB, CE, cNRTLus, GS, TUV *as per Manufacturer |
| IP Rating | IP23 |
| Environmental Protection | Advertised as Dust Resistant/Water Resistant *Manufacturer Testing: IP23 |
| Dimensions | 15.8" / 40.1 cm (Accessory) 29 x 20.1 x 18.4" / 734 x 511 x 468 cm |
| Weight | 75 lb / 34 kg |
